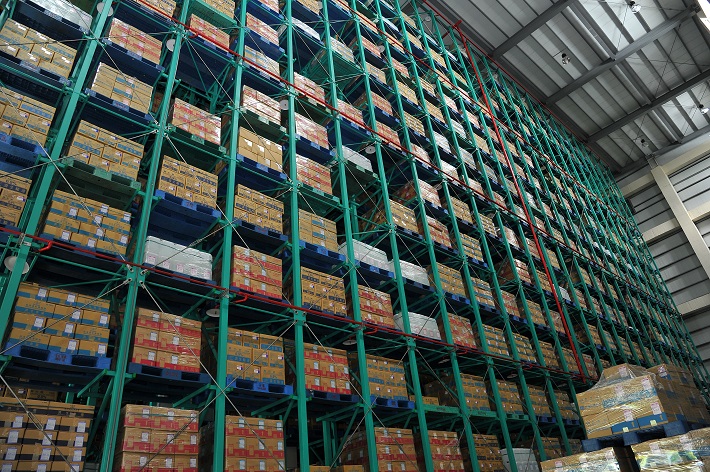

Plastic Pallet-storage racks

Applications：

Certificate / Catalogue：

Global Network Contact Us

Details

Over the past century, the earth’s resources have been excessively exhausted. The extensive use of wooden pallets by factories has led to the massive tree logging and the reduction of  the huge forest, resulting in the global greenhouse effect and a serious impact on the environment.



Advantages: There are no nails that can damage packaging, no fumigation is needed, and it is pest-free, maintenance-free and recyclable.

Features: Lightweight with a high carrying load, available in customized designs & a full range of specifications, strict management & good quality, and high-efficiency logistics. We sincerely invite you to visit our website and inquire about our trustworthy plastic pallet brands and prices.



Plastic pallet typs:

1. Freezer type pallets:
Meeting the customer’s requirement of storing the pallets in cold and refrigerating environment. (customized ultra-low temperature of -60 ° C).

2. Medical & chemical type pallets:
The medical & chemical type pallets feature the advantages of easy loading and haulage operation.

3. Food & catering type pallets:
Food & catering type pallets are easy to clean and can safeguard food safety and sanitation. For catering services, model DC-120100-150 E/CP is highly recommended.

4.Conductive, static dissipative & antistatic type pallets:

Customized design: The conductive pallets are available with a surface resistivity of 105〜1012Ω/sq depending on customer’s requirements (custom-made).

5. Reinforced type plastic pallets:

Customized design: The new patented models inserted with the steel are suitable for the high load application. (custom-made).

6. AS/RS pallet:

Suitable for AS/RS to improve the incoming/outgoing operations.

7. One-way shipment:

No fumigation needed, properly concerned with environmentally friendliness & pest-free.

Use

● Precautions for the use of general type pallets:
1. If the pallet is used to store bulk commodities, you may need to install protective fencing or properly bundle the commodities to ensure operational safety.

2. If the pallet is used to store oil barrels, be sure to install protective fencing that exceeds more than 1/2 the height of the barrel and store the barrels upright and avoid laying the barrels horizontally.

3. When using a forklift to handle the pallet, please insert the forks at the center of the openings. During haulage operations, please incline the forks slightly upward to ensure smooth haulage operation and extend the service life of the pallet.

Models

NO Name Feature Use
D Type 2 Loading side/2 Way 1.Reinforced rackable structure, especially suitable for automatic warehousing and heavy-duty conditions, only fit for forklift;handlifter or power stacker not allowed.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP.		 1.Size(mm):Length 1100~1450, Width 1100~1500, Height 130~160
2.Loading Side:Double
3.Entry Gap:2 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.
DJ Type 2 Loading side/2 Way 1.Reinforced rackable structure, especially suitable for automatic warehousing and heavy-duty conditions, only fit for forklift;handlifter or power stacker not allowed.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP.		 1.Size(mm):Length 1450, Width 1200, Height 150
2.Loading Side:Double
3.Entry Gap:2 Way
4.Loading Capacity(Ton):Static 4.8, Dynamic 1.6, Racking 0.8
DC Type 2 Loading side/4 Way 1.Reinforced rackable structure, especially suitable for automatic warehousing and heavy-duty conditions, only fit for forklift;handlifter or power stacker not allowed.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP.		 1.Size(mm):Length 1100~1320, Width 1000~1300, Height 130~150
2.Loading Side:Double
3.Entry Gap:4 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.
DCJ Type 2 Loading side/4 Way 1.Reinforced rackable structure, especially suitable for automatic warehousing and heavy-duty conditions, only fit for forklift;handlifter or power stacker not allowed.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP.		 1.Size(mm):Length 1200, Width 1000, Height 145~160
2.Loading Side:Double
3.Entry Gap:4 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.
F Type 1 Loading side/2 Way 1.Reinforced rackable structure, suitable for mid-duty automatic warehousing, in-plant transport, and cargo carrying conditions, fit for forklift and trailer.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP, P&FP represents for recycled PP.		 1.Size(mm):Length 1100~1200, Width 1100~1200, Height 145~150
2.Loading Side:Single
3.Entry Gap:2 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.
SJ Type 1 Loading side/2 Way 1.Suitable for light-duty automatic warehousing, in-plant transport, cargo carrying and three chain conveyor conditions, fit for forklift and trailer.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP, P&FP represents for recycled PP.		 1.Size(mm):Length 1130, Width 1130, Height 150
2.Loading Side:Single
3.Entry Gap:2 Way
4.Loading Capacity(Ton):Static 4.5, Dynamic 1.5, Racking 0.8
SC Type 1 Loading side/4 Way 1.Suitable for light-duty automatic warehousing, in-plant transport, cargo carrying and three chain conveyor conditions, fit for forklift and trailer.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP, P&FP represents for recycled PP.		 1.Size(mm):Length 1100~1380, Width 880~1100, Height 130~155
2.Loading Side:Single
3.Entry Gap:4 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.
SCJ Type 1 Loading side/4 Way 1.Suitable for light-duty automatic warehousing, in-plant transport, cargo carrying and three chain conveyor conditions, fit for forklift and trailer.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP, P&FP represents for recycled PP.		 1.Size(mm):Length 1050~1320, Width 800~1100, Height 120~160
2.Loading Side:Single
3.Entry Gap:4 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.
FC Type 1 Loading side/4 Way 1.Reinforced rackable structure, suitable for mid-duty automatic warehousing, in-plant transport, and cargo carrying conditions, fit for forklift and trailer.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP, P&FP represents for recycled PP.		 1.Size(mm):Length 1100~1320, Width 950~1300, Height 130~160
2.Loading Side:Single
3.Entry Gap:4 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.
FCJ Type 1 Loading side/4 Way 1.Reinforced rackable structure, suitable for mid-duty automatic warehousing, in-plant transport, and cargo carrying conditions, fit for forklift and trailer.
2.Direction of Model NO.:E represents for PE material,CP represents for Co-polymer PP, P&FP represents for recycled PP.		 1.Size(mm):Length 1100~1200, Width 1000~1100, Height 155~160
2.Loading Side:Single
3.Entry Gap:4 Way
4.Loading Capacity(Ton):Static, Dynamic, Racking are depend on different specifications, please reference to our product catalog.

(NAN YA，Sep 13, 2024)
